AI-Native Design Workflow : Edition 01High-Speed Prototyping & System Setup
Written: March 26, 2026
Summary:
This project demonstrates my AI-Native Workflow, a process that bridges high-speed functional prototyping with scalable design systems. In Edition 01, I focused on building the core structure of an SEO Analytics Dashboard to test how effectively AI can handle complex B2B layouts and data logic.
Deployed via Vercel / Built with Next.js & Tailwind CSS
Deep Dive: Building the SEO Analytics Dashboard
Step 1: Rapid Prototyping & Functional Intent
I defined the core user journey for the dashboard, including Citation Tables and Detail Sidebars.
I used v0 to generate the first functional draft, testing the integration mode and visual hierarchy without manual code intervention.

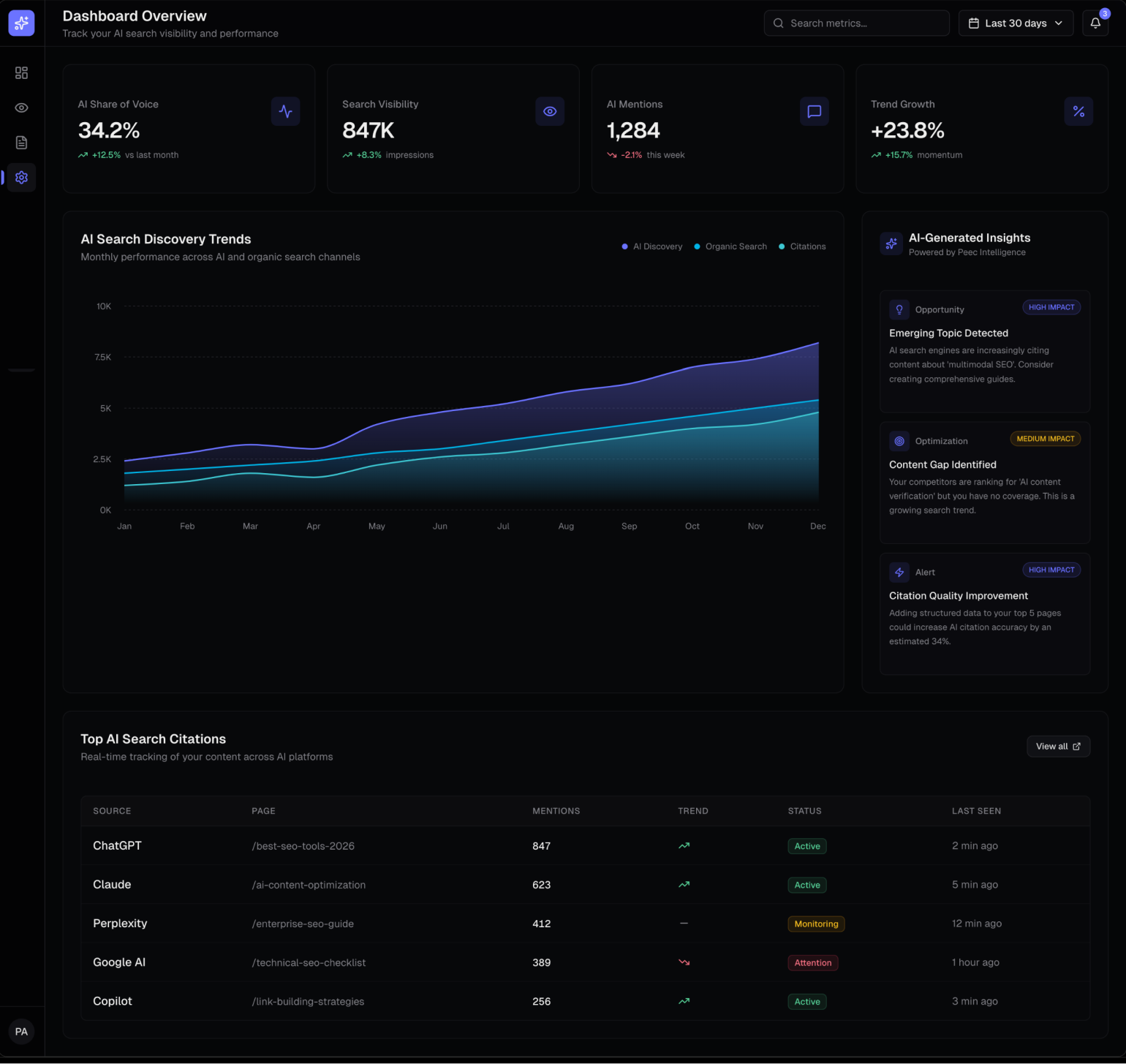

Initial v0 UI draft.

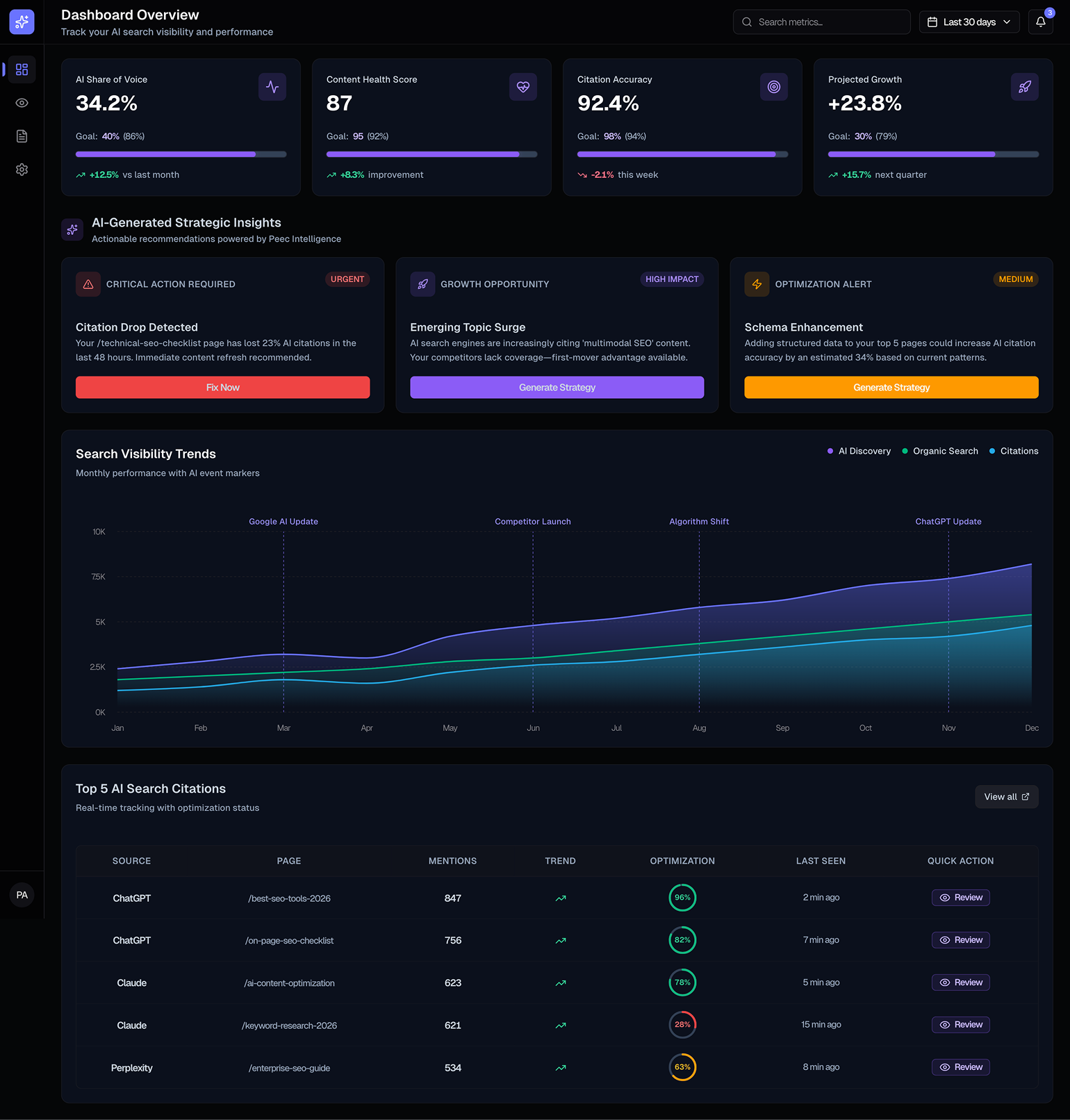

Utilizing descriptive prompts to optimize the layout, visual hierarchy, and accessibility standards without manual code intervention.Step 2: Engineering for Scalability (Managing Design Debt)
Using Cursor and Claude Code, I transitioned from fragmented code to a modular, reusable component architecture.
I extracted Tailwind patterns into centralized variables, establishing a single source of truth before technical debt could accumulate.

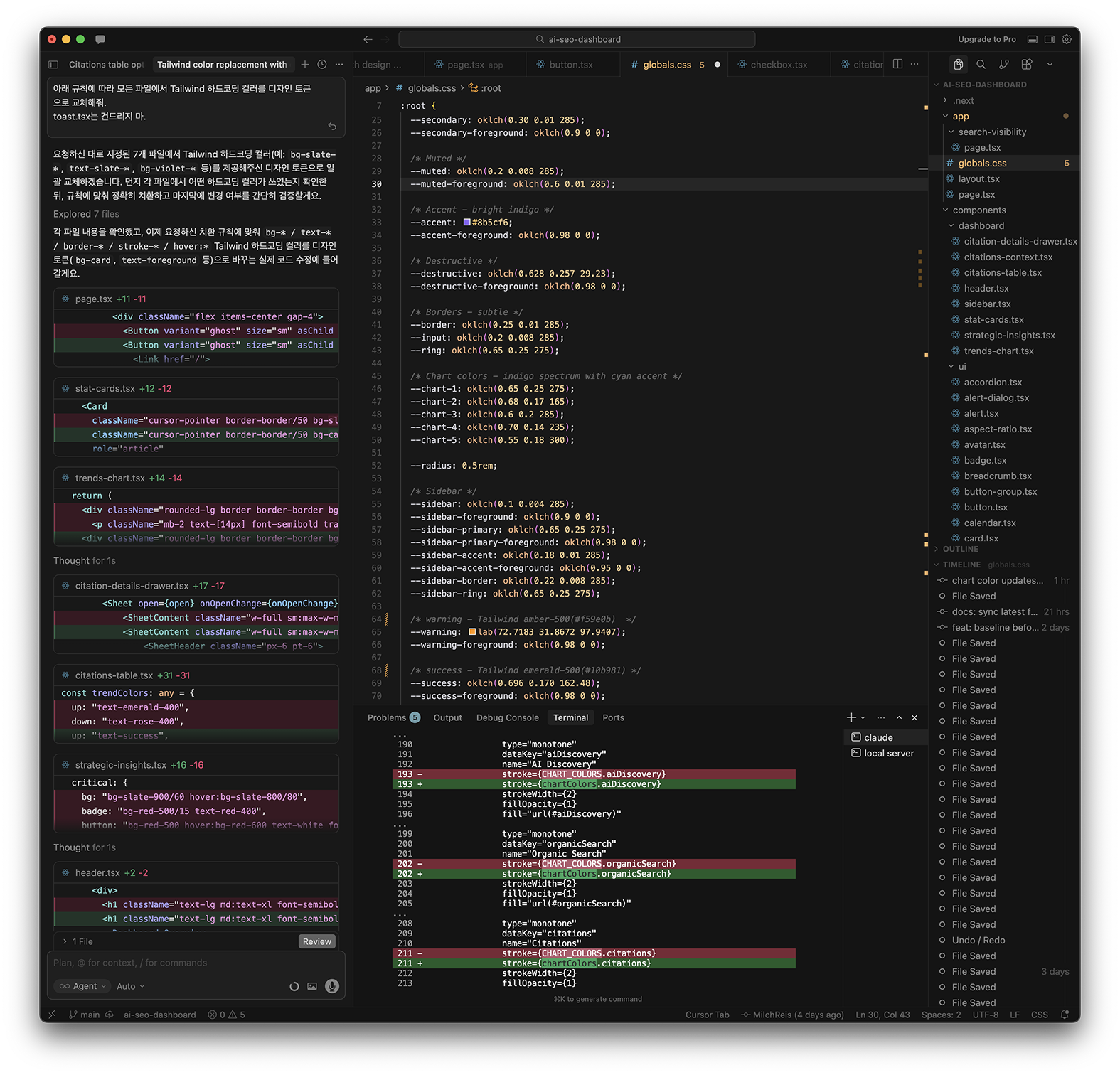

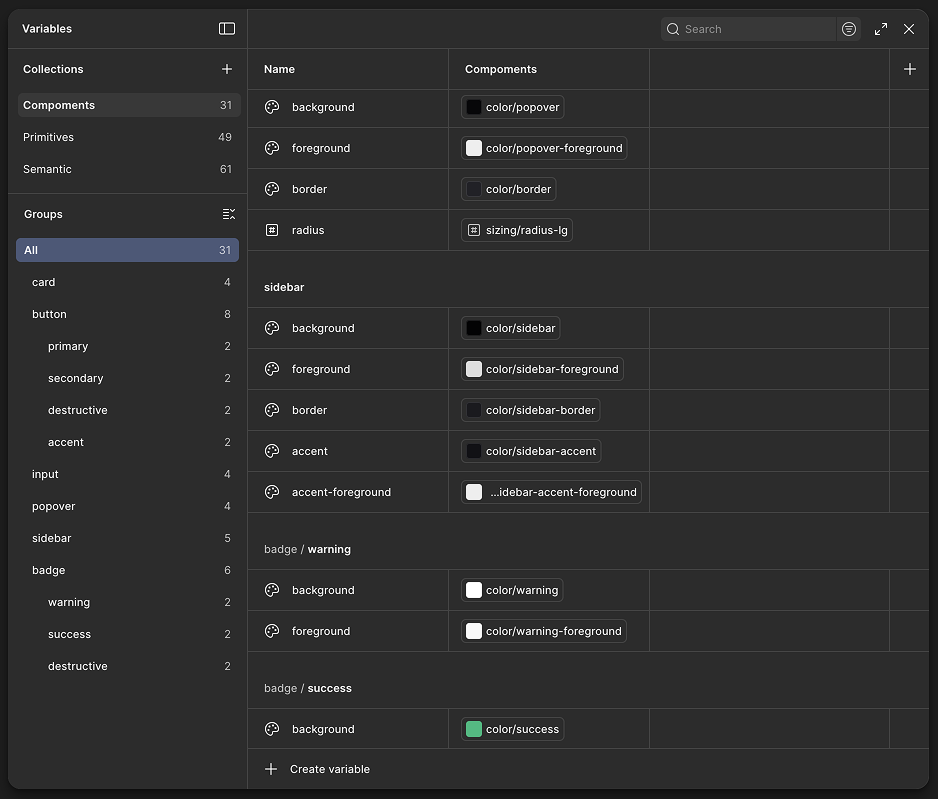

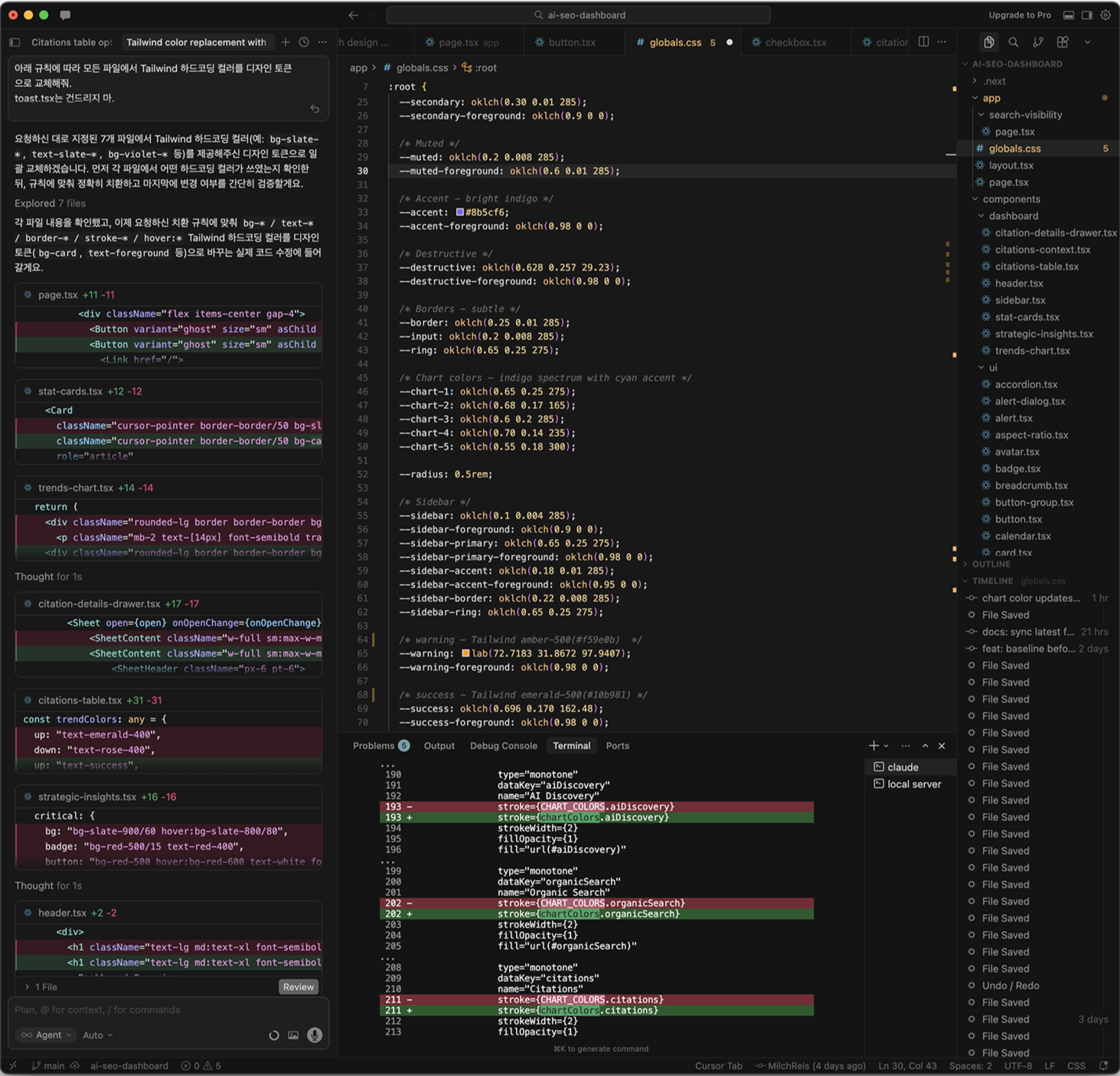

Establishing a Single Source of Truth by aligning CSS variables in the Cursor-based codebase with Figma’s Local Variables for consistent design scaling.Step 3: Advanced Logic & Interaction
I integrated functional data logic to simulate a high-quality production environment, ensuring real-time updates across the application.
I implemented essential B2B features such as bulk actions, table sorting, and skeleton loading states.
Step 4: Closing the Loop & Validation
The dashboard was deployed via Vercel to validate performance and design integrity in a real-world environment.
I used bidirectional sync to maintain an up-to-date Component Library in Figma, ensuring the design and code stayed perfectly aligned.

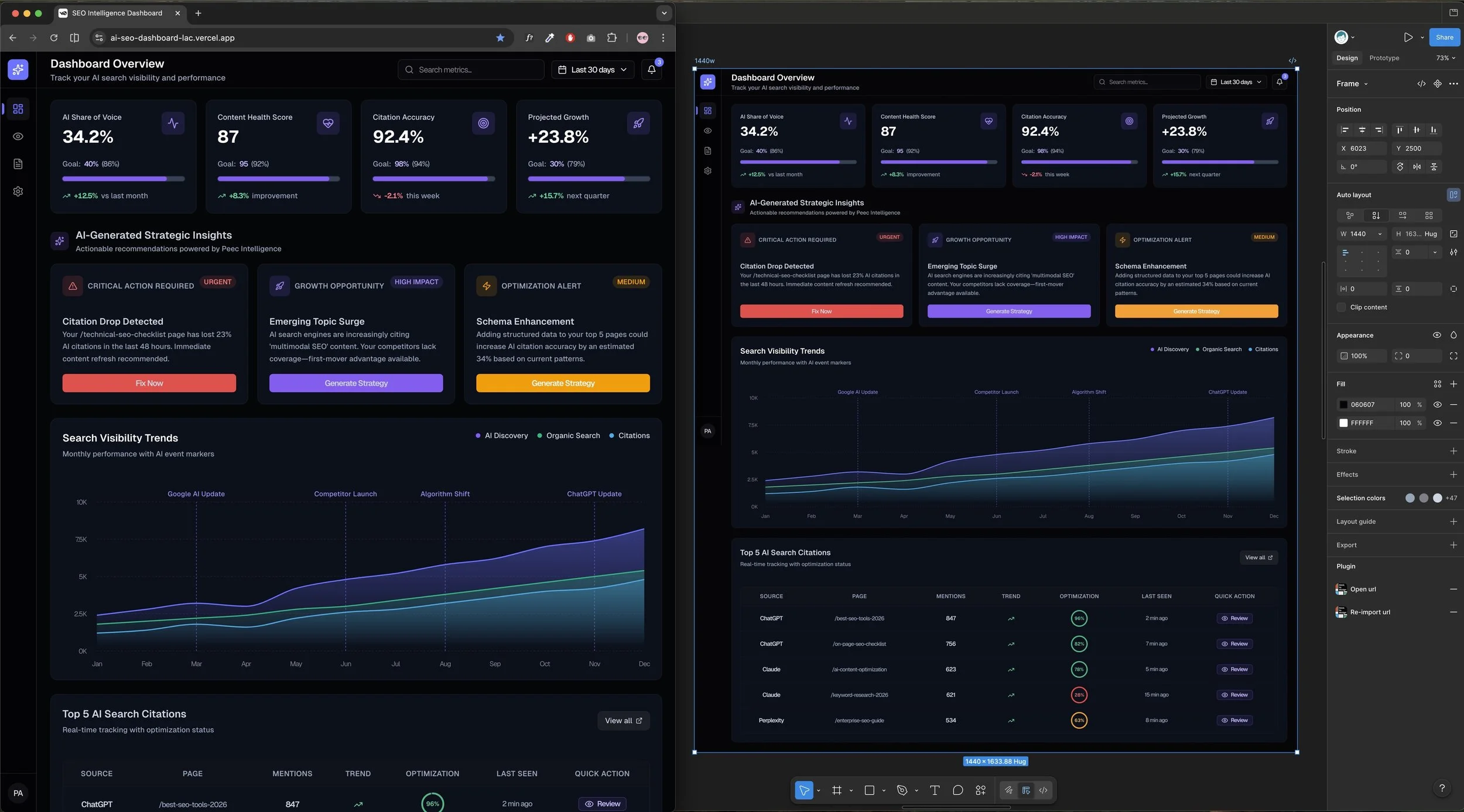

A side-by-side verification of the Vercel-deployed dashboard and the Figma canvasChallenges & Insights: Navigating the Manual Gap
While AI provided incredible speed, this entry revealed significant Design Debt. The initial variables were messy, and color redundancy made the system hard to maintain. This "Manual Gap" in syncing variables back to Figma became the direct motivation for Edition 02, where I developed a custom plugin to automate the entire process.
